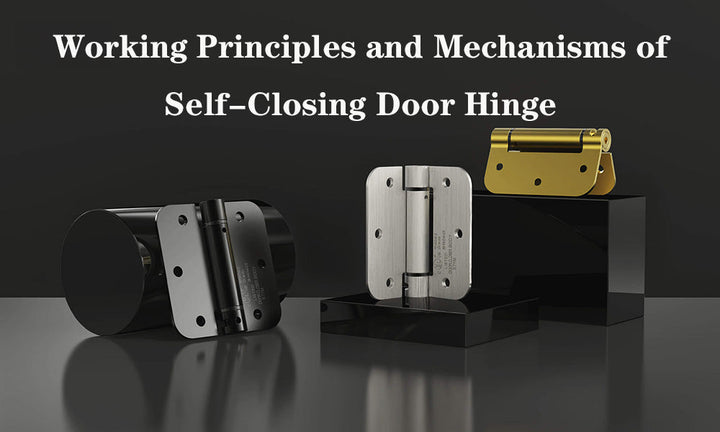

How Self-Closing Door Hinges Work: Types, Mechanisms & Uses
Self-closing door hinges are an essential component in modern architecture and interior design, ensuring doors close automatically after being opened. These hinges are widely used in residential, commercial, and industrial settings to enhance convenience, safety, and energy efficiency. In this blog, we will delve into the basic working principles of self-closing door hinges, analyze how they achieve automatic door closure through various mechanisms, and explore the differences between mechanical, hydraulic, and pneumatic self-closing door hinges.
Basic Working Principles of Self-Closing Door Hinges
Self-closing door hinges are designed to automatically return a door to its closed position after being opened. This functionality is achieved through energy storage and release mechanisms, which vary depending on the type of hinge. When the door is opened, the internal mechanism—whether a spring, hydraulic fluid, or air pressure—stores energy by compressing or displacing. Upon release, this stored energy is gradually converted into kinetic energy, pulling the door back to its closed position.
The spring-based hinges use coiled springs to store mechanical energy, offering a cost-effective and durable solution. Hydraulic hinges rely on fluid resistance to create a smooth, controlled closing motion, ideal for heavier doors. Pneumatic hinges utilize air pressure for quiet and consistent operation, making them suitable for noise-sensitive environments. Each system ensures reliable door closure, enhancing convenience, safety, and energy efficiency in various applications.
Detailed Analysis of Self-Closing Mechanisms
Self-closing door hinges rely on various mechanisms to achieve automatic door closure. These mechanisms are designed to store energy when the door is opened and release it gradually to ensure a smooth and controlled closing action. Below, we will explore the three primary types of self-closing mechanisms—spring-based, hydraulic, and pneumatic—in detail, highlighting their unique features, advantages, and applications.
1. Spring-Based Self-Closing Door Hinges
Spring-based self-closing hinges are one of the most widely used mechanisms due to their simplicity, reliability, and cost-effectiveness. These hinges incorporate a coiled spring that stores mechanical energy when the door is opened. As the door is released, the spring unwinds, converting the stored energy into kinetic energy, which pulls the door back to its closed position.
How It Works:
When the door is opened, the spring inside the hinge is compressed or stretched, depending on the design.
The spring's tension creates resistance, storing potential energy.
Upon release, the spring returns to its original state, releasing the stored energy and pulling the door closed.
Key Features:
Adjustable Tension: Many spring-based hinges come with adjustable tension settings, allowing users to control the speed and force of the door closure. This is particularly useful for doors of varying weights or for applications requiring specific closing speeds.
Durability: High-quality springs are designed to withstand thousands of open-close cycles, ensuring long-term reliability.
Cost-Effective: Spring-based systems are generally more affordable than hydraulic or pneumatic alternatives, making them a popular choice for residential and light commercial applications.
Advantages:
Simple design with fewer moving parts, reducing the likelihood of mechanical failure.
Easy to install and maintain.
Suitable for lightweight to medium-weight doors.
Limitations:
May produce a noticeable "spring noise" during operation.
Requires periodic adjustments to maintain optimal performance, especially in high-traffic areas.
Less suitable for heavy doors or environments requiring ultra-smooth operation.
Applications:
Spring-based self-closing hinges are commonly used in:
Residential interior and exterior doors.
Cabinet doors and furniture.
Light commercial settings, such as small offices or retail spaces.
2. Hydraulic Self-Closing Door Hinges
Hydraulic self-closing hinges utilize a fluid-filled cylinder to control the door's closing action. These hinges are known for their smooth and controlled operation, making them ideal for heavy-duty applications.
How It Works:
When the door is opened, hydraulic fluid inside the cylinder is forced through a series of valves and channels.
The fluid's movement creates resistance, storing energy in the form of hydraulic pressure.
As the door is released, the fluid flows back through the system, generating a smooth and controlled closing motion.
Key Features:
Smooth Operation: Hydraulic systems provide a more gradual and controlled closing action compared to spring-based hinges, reducing the risk of slamming.
Adjustable Speed: The flow of hydraulic fluid can be adjusted to control the closing speed, making these hinges suitable for a wide range of applications.
High Load Capacity: Hydraulic hinges can handle heavier doors, making them ideal for commercial and industrial settings.
Advantages:
Excellent for heavy doors, such as fire-rated or security doors.
Provides a quiet and smooth closing action, enhancing user experience.
Highly durable and capable of withstanding frequent use.
Limitations:
More complex design compared to spring-based hinges, which can increase installation and maintenance costs.
Sensitive to temperature changes, as hydraulic fluid viscosity can vary with temperature.
Generally more expensive than spring-based systems.
Applications:
Hydraulic self-closing hinges are commonly used in:
Fire-rated doors in commercial and industrial buildings.
Security doors and access control systems.
Large entryways in public spaces, such as hospitals, schools, and airports.
3. Pneumatic Self-Closing Door Hinges
Pneumatic self-closing hinges rely on air pressure to achieve automatic door closure. These hinges are known for their quiet operation and consistent performance, making them ideal for environments where noise reduction is a priority.
How It Works:
When the door is opened, a pneumatic cylinder inside the hinge compresses air.
The compressed air stores potential energy.
As the door is released, the compressed air expands, pushing the door back to its closed position.
Key Features:
Quiet Operation: Pneumatic hinges operate more quietly than spring-based or hydraulic systems, making them suitable for environments where noise is a concern.
Consistent Performance: Air pressure provides a consistent closing force, ensuring reliable performance over time.
Low Maintenance: Pneumatic systems have fewer moving parts compared to hydraulic systems, reducing the need for maintenance.
Advantages:
Ideal for environments requiring quiet operation, such as hospitals, libraries, and offices.
Provides a smooth and consistent closing action.
Low maintenance requirements due to the simplicity of the air pressure mechanism.
Limitations:
May not be suitable for extremely heavy doors, as air pressure may not provide sufficient force.
Sensitive to air leaks, which can affect performance.
Generally more expensive than spring-based hinges.
Applications:
Pneumatic self-closing hinges are commonly used in:
Healthcare facilities, such as hospitals and clinics.
Office buildings and conference rooms.
Residential settings where quiet operation is desired.
Comparison of Self-Closing Mechanisms
Choosing the Right Self-Closing Door Hinge
When selecting a self-closing door hinge, it's essential to consider the specific requirements of your application. Factors to consider include:
Door Weight: Heavier doors may require hydraulic or pneumatic hinges to ensure smooth and reliable operation.
Closing Speed: Adjustable closing speed is crucial for applications where safety and user comfort are priorities.
Noise Level: In environments where noise reduction is important, pneumatic hinges may be the best choice.
Durability: Consider the expected usage frequency and choose a hinge that can withstand the required number of cycles.
Conclusion
Self-closing door hinges are a vital component in modern architecture, offering convenience, safety, and energy efficiency. Understanding the working principles and mechanisms of these hinges, including spring-based, hydraulic, and pneumatic systems, can help you make an informed decision when selecting the right hinge for your needs. Whether you're looking for a cost-effective solution for residential doors or a heavy-duty hinge for commercial applications, there's a self-closing door hinge that meets your requirements.
By choosing the appropriate hinge, you can ensure that your doors operate smoothly, quietly, and reliably, enhancing the overall functionality and aesthetics of your space.
